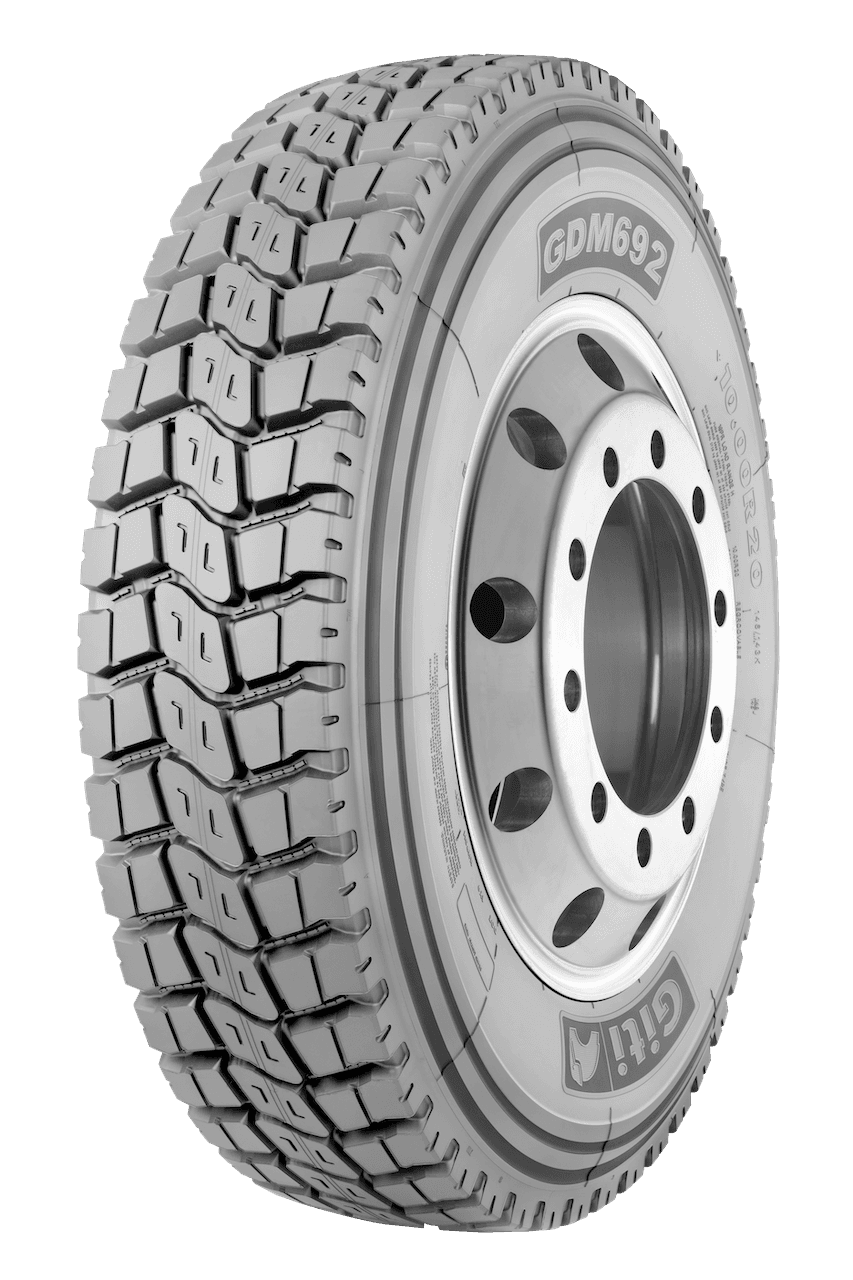

GDM692
COOLER RUNNING CAPABILITIES ▪ EXCELLENT TRACTION AND GRIP ▪ LONGER SERVICE LIFE
Drive
20 - 24
Rim Size
0 - 95
Aspect Ratio
11 - 325
Section Width
K
Speed Rating
Features
- Intertwining tread pattern
- Sipe design in center pattern blocks
- Specially formulated tread compound
- Improved base construction formulation
- Reinforced casing and bead structure
- Stone ejection design on the groove bottom
Benefits
- Provides excellent traction and braking for safer driving
- Strengthened wet grip performance
- Wear resistance for regional / highway roads and mild off road
- Promotes cooler running by insulating tread heat on casing
- Improves durability of casing and bead, increasing tire damage resistance from heavy load operating conditions
- Prevents stone trapping, reducing the risk of tire damage
| Tire Size | PR | Load Index | Speed Rating | Approved Rim | Outer Diameter (mm) | Tread Depth (mm) | Max Load (kg) | Max Pressure | |
| kPA | PSI | ||||||||
| 10.00R20 | 16 | 146/143 | K | 7.5 | 1053 | 15.8 | 3000/2725 | 830/830 | 120/120 |
| 11.00R20 | 16 | 150/147 | K | 8.0 | 1085 | 17 | 3350/3075 | 830/830 | 120/120 |
| 12.00R20 | 18 | 154/151 | K | 8.5 | 1125 | 17.2 | 3750/3450 | 830/830 | 120/120 |
| 325/95R24 | 22 | 162/160 | K | 9 | 1228 | 20.2 | 4750/4500 | 850/850 | 123/123 |
| Tire Size | LI | SI |
| 10.00R20 | 146/143 | K |
| 11.00R20 | 150/147 | K |
| 12.00R20 | 154/151 | K |
| 325/95R24 | 162/160 | K |
