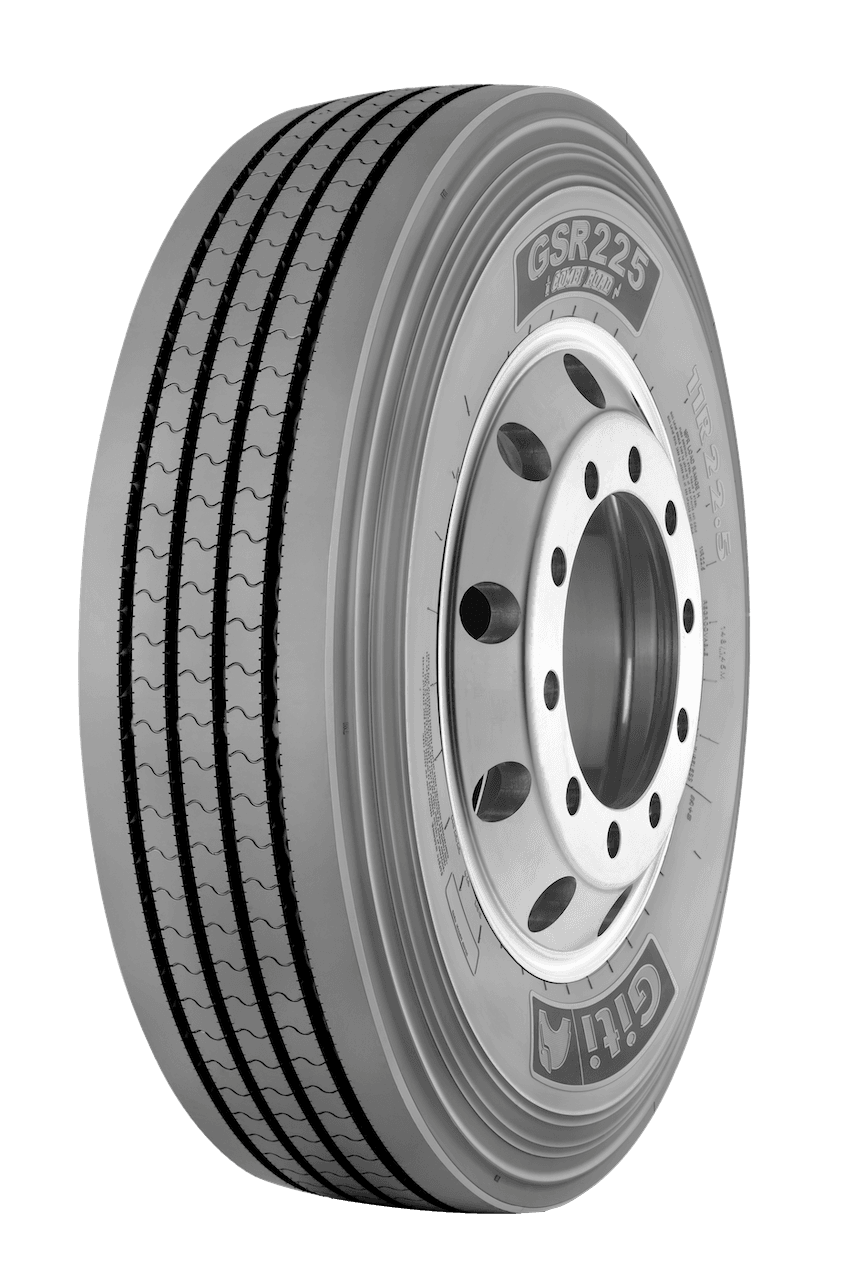

GSR225
RESIST IRREGULAR WEAR ▪ LONGER MILEAGE ▪ BETTER IN HANDLING
All Position
20 - 225.
Rim Size
0 - 80
Aspect Ratio
11 - 315
Section Width
K - M
Speed Rating
Features
- Four belt construction
- Advanced Equal Force Casing technology
- Widened tread layout
- Giti specially-formulated tread compound
- Resilient four vertical groove and zig-zag bottom design
- Multiple sipes along the side of groove
- Tire casing designed for retreadability
- FEA bead construction optimization concept for bead construction
Benefits
- Increases casing and tread stiffness, minimizing tire deformation for longer wear
- Uniform force distribution enables optimal tire footprint at various loads level thus result in regular tread wear
- Large tread volume for extended wear life
- Improved wear resistance of tread
- Provides better handling and controllability of vehicle
- Self cleaning capability and higher resistance to damage from road hazards
- Higher retreadable capabilities
- Optimizes and uniformly distributes load pressure to the bead, minimizing damage
| Tire Size | PR | Load Index | Speed Rating | Approved Rim | Outer Diameter (mm) | Tread Depth (mm) | Max Load (kg) | Max Pressure | |
| kPA | PSI | ||||||||
| 10.00R20 | 16 | 147/143 | L | 7.5 | 1052 | 14 | 3075/2725 | 800/800 | 115/115 |
| 11.00R20 | 16 | 150/146 | K | 8 | 1085 | 15 | 3350/3000 | 825/825 | 120/120 |
| 11R22.5 | 16 | 148/145 | M | 8.25 | 1050 | 15.3 | 3150/2900 | 850/850 | 123/123 |
| 295/80R22.5 | 18 | 154/149 | M | 9.00 | 1044 | 16.5 | 3750/3250 | 850/850 | 123/123 |
| 315/80R22.5 | 20 | 158/150 | L | 9.00 | 1076 | 16.8 | 4250/3350 | 900/900 | 131/131 |
| Tire Size | LI | SI |
| 10.00R20 | 147/143 | L |
| 11.00R20 | 150/146 | K |
| 11R22.5 | 148/145 | M |
| 295/80R22.5 | 154/149 | M |
| 315/80R22.5 | 158/150 | L |
