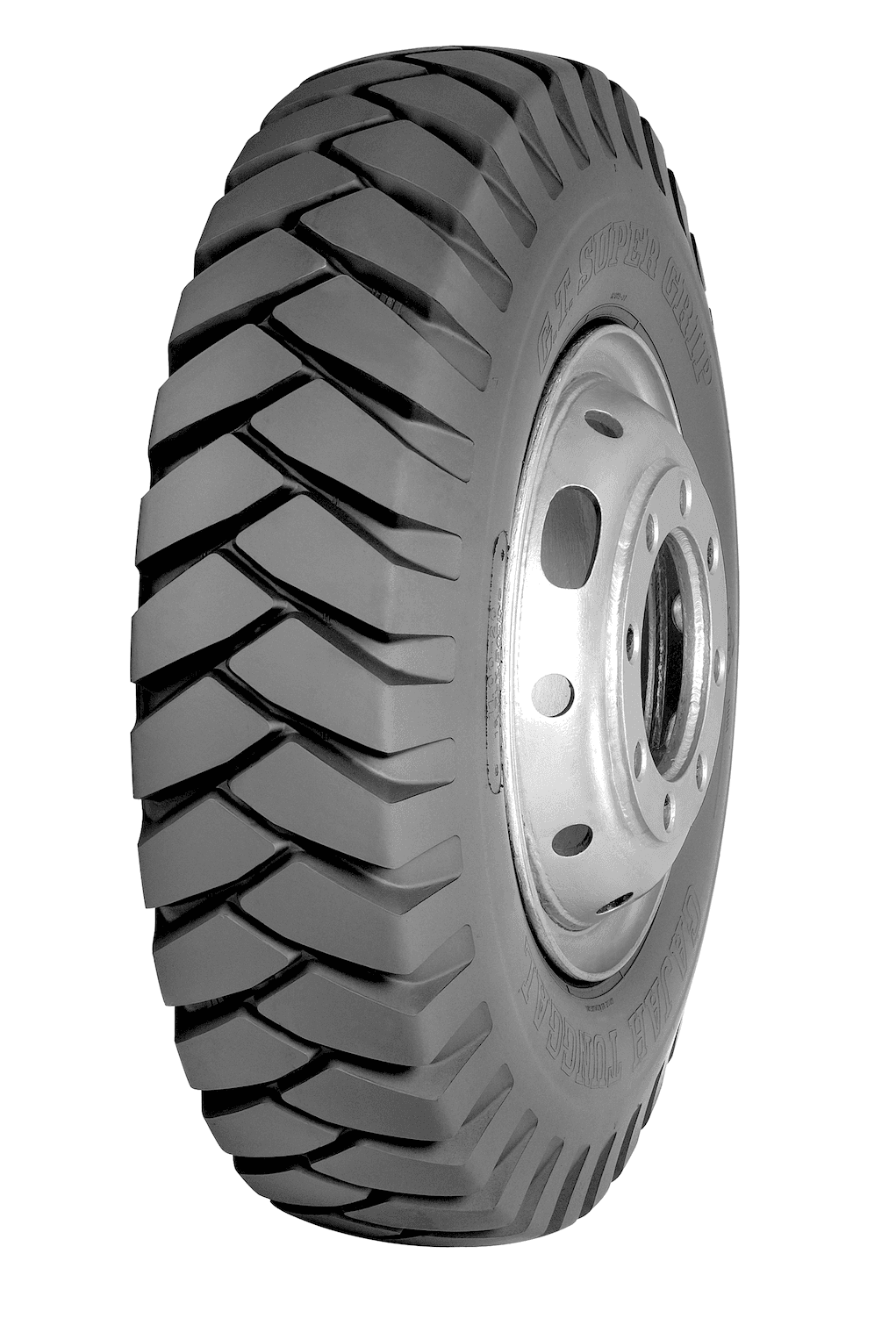

GT Super Grip
Specially designed for logging, mining and construction works
Drive Position
Features and Benefits
- Directional inter-lock lug pattern design
- Wide and extra heavy tread
- Open shoulder tread
- Provides strong grip and maximum stability for heavy duty application
- Highly resistant to tearing, cutting and snagging by rock
- Good traction and quick mud self cleaning ability
| Tire Size | PR | Load Index | Speed Rating | Approved Rim | Outer Diameter (mm) | Tread Depth (mm) | Section Width (mm) | Max Load (kg) | Max Pressure (kpa) | |
| S | D | |||||||||
| 10.00-20 | 16 | - | - | - | 7.5 | 1065 | 19.8 | 275 | 3000/2650 | 790/720 |
| 11.00-20 | 16 | - | - | - | 8.00V | 1110 | 23 | 299 | 3350/2900 | 790/720 |
| 11.00-20 | 18 | 152 | 147 | F | 8.00V | 1110 | 23 | 304 | 3550/3075 | 860/790 |
| 12.00-20 | 18 | 154 | 150 | F | 8.50V | 1146 | 25.8 | 321 | 3750/3350 | 790/720 |
| 12.00-20 | 18 | 154 | 150 | F | 8.50V | 1140 | 25.8 | 327 | 3750/3350 | 790/720 |
| 12.00-24 | 18 | 158 | 154 | F | 8.50V | 1245 | 24.6 | 320 | 4250/3750 | 790/720 |
| 12.00-24 | 20 | 160 | 155 | F | 8.50V | 1245 | 24.6 | 320 | 4500/3875 | 860/790 |
| 7.50-16 | 14 | 123 | 121 | L | 6.00GS SDC | 835 | 15 | 222 | 1550/1450 | 650 |
| 9.00-20 | 14 | 141 | 137 | K | 7.00T | 1024 | 19.3 | 268 | 2575/2300 | 760/690 |
| Tire Size | LI | SI |
| 10.00-20 | - / - | - |
| 11.00-20 | - / - | - |
| 11.00-20 | 152 / 147 | F |
| 12.00-20 | 154 / 150 | F |
| 12.00-20 | 154 / 150 | F |
| 12.00-24 | 158 / 154 | F |
| 12.00-24 | 160 / 155 | F |
| 7.50-16 | 123 / 121 | L |
| 9.00-20 | 141 / 137 | K |
