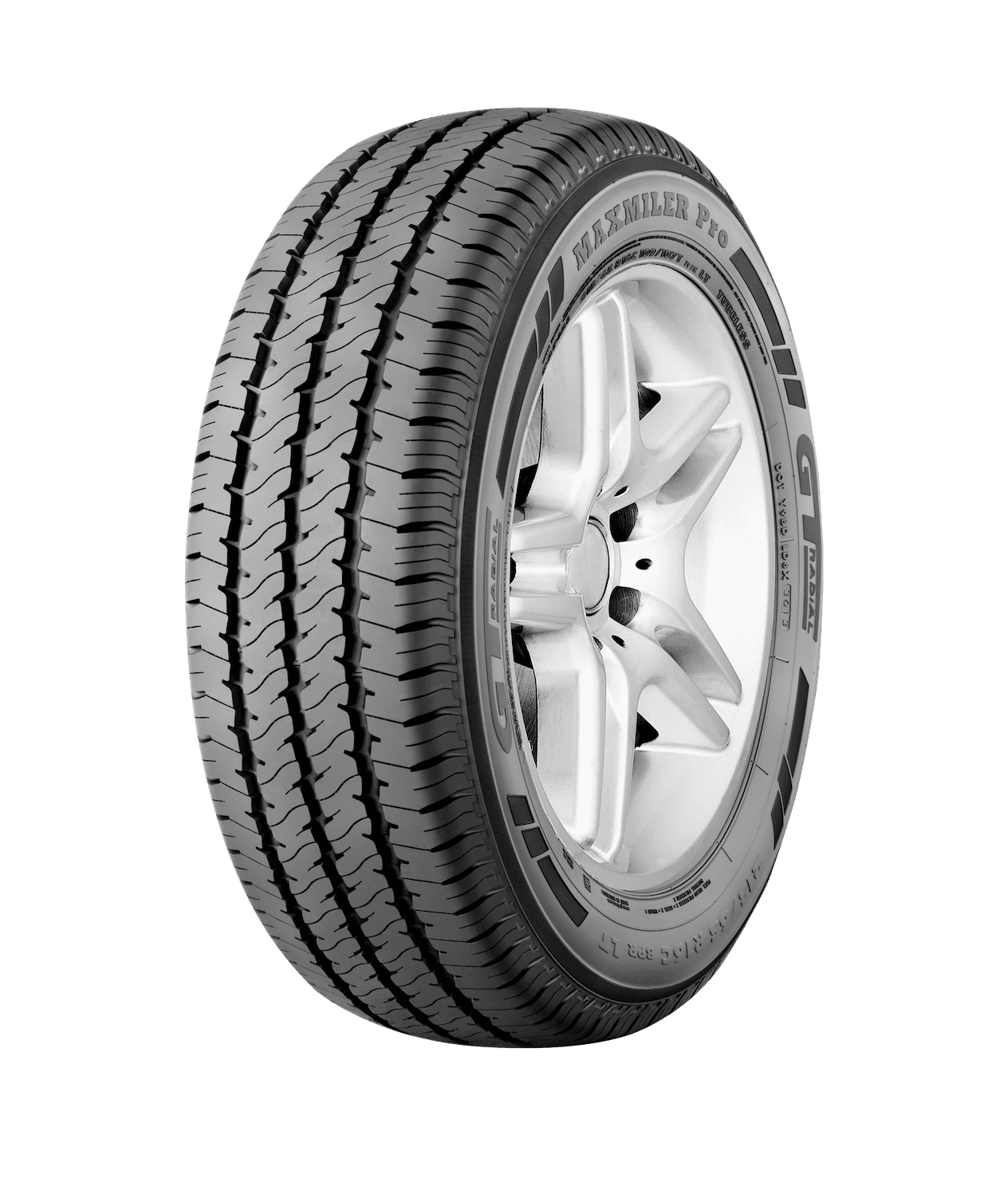

Maxmiler Pro
MAXMILER PRO IS DESIGNED FOR TODAYS LIGHT COMMERCIAL VEHICLES. DELIVERS SAFETY, DURABLE AND HIGH SERVICE MILEAGE.
Urban and Regional
5 Years Limited Warranty
12 - 17
Rim Size
0 - 85
Aspect Ratio
155 - 255
Section Width
N - H
Speed Rating
Features
- Large shoulder block with integrated sipes
- Circumferential rib designed with lateral sipes
- Three wide circumferential grooves
Benefits
- Stronger grip, Improve cornering stability and Shorten braking distance
- Excellent grip on both wet and dry road condition, Lower noise level, and Improve mileage for longer service
- Effective dispense water, Reduce aquaplaning, and Better handling on wet road condition
| Tire Size | Load Index | Speed Rating | Rim Width (inch) | Rim Diameter (inch) | Overall Diameter (mm) | Tread Depth (mm) | Section Width (mm) | Max Load (kg) |
| 155 R12C | 88/86 | R | 4.5 | 12 | 550 | 8.2 | 155 | 560/530 |
| 165 R13C | 94/92 | R | 4.5 | 13 | 596 | 8.7 | 165 | 670/630 |
| 175 R13C | 97/95 | R | 5 | 13 | 615 | 8.3 | 175 | 730/690 |
| 185 R14C | 102/100 | R | 5 | 14 | 654 | 10.2 | 185 | 850/800 |
| 195 R14C | 106/104 | R | 5.5 | 14 | 670 | 9.7 | 195 | 950/900 |
| 195 R15C | 106/104 | R | 5 | 15 | 694 | 10.2 | 195 | 950/900 |
| 205/70 R15C | 106/104 | R | 6 | 15 | 669 | 10.2 | 205 | 950/900 |
| 225/70 R15C | 112/110 | R | 6.5 | 15 | 697 | 10.7 | 225 | 1120/1060 |
| 255/70 R15C | 112/110 | S | 7.5 | 15 | 739 | 11.7 | 255 | 1120/1060 |
| 175/75 R16C | 101/99 | R | 5 | 16 | 668 | 9.7 | 175 | 825/775 |
| 225/75 R16C | 118/116 | R | 6 | 16 | 744 | 10.7 | 225 | 1320/1250 |
| 235/65 R16C | 121/119 | R | 7 | 16 | 712 | 10.6 | 235 | 1450/1360 |
| 235/65 R16C | 115/113 | R | 7 | 16 | 712 | 10.6 | 235 | 1215/1150 |
| Tire Size | LI | SI |
| 155 R12C | 88/86 | R |
| 165 R13C | 94/92 | R |
| 175 R13C | 97/95 | R |
| 185 R14C | 102/100 | R |
| 195 R14C | 106/104 | R |
| 195 R15C | 106/104 | R |
| 205/70 R15C | 106/104 | R |
| 225/70 R15C | 112/110 | R |
| 255/70 R15C | 112/110 | S |
| 175/75 R16C | 101/99 | R |
| 225/75 R16C | 118/116 | R |
| 235/65 R16C | 121/119 | R |
| 235/65 R16C | 115/113 | R |
